Nose End


Revealing APT-P Buffers and Drawgear

APT's nose end has a streamlined profile. Under the reinforced plastic nose cone is a set of retractable buffers, a coupling hook and a drophead buckeye coupler, together with brake and main reservoir air connections and an electrical jumper cable, all for emerency use. Access is obtained by lifting the nose cone.

APT-P Nose

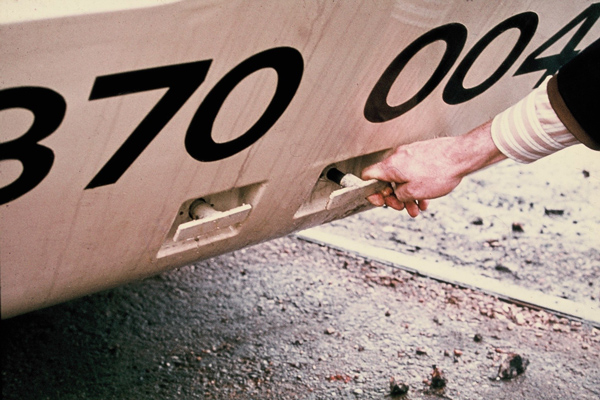

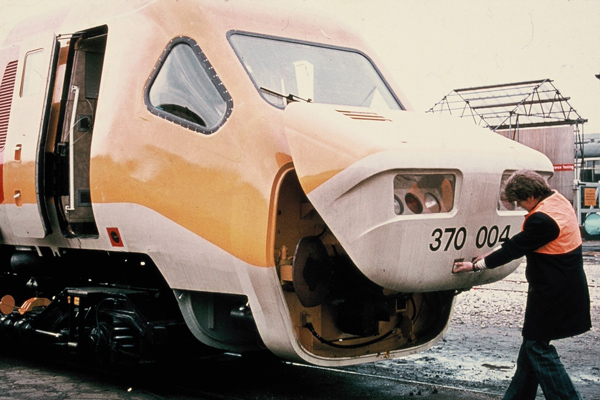

RIGHT To Release & LEFT to LiftUp it goes

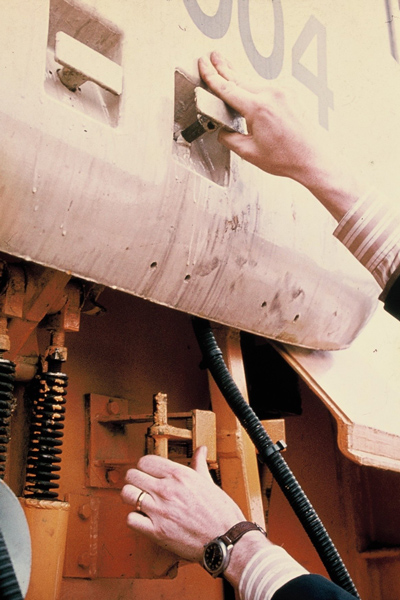

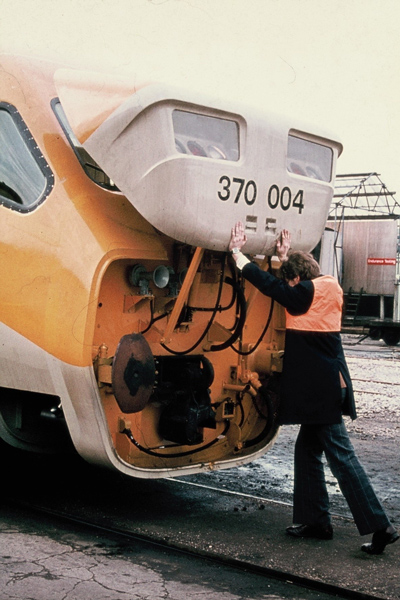

Nearly thereLock it in place

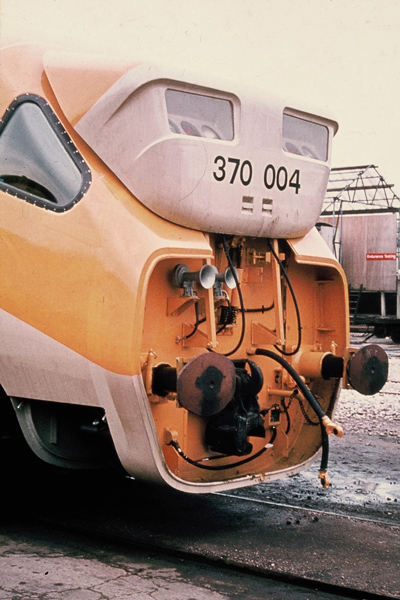

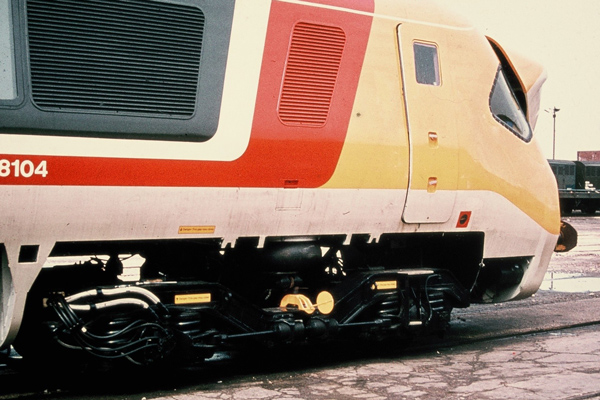

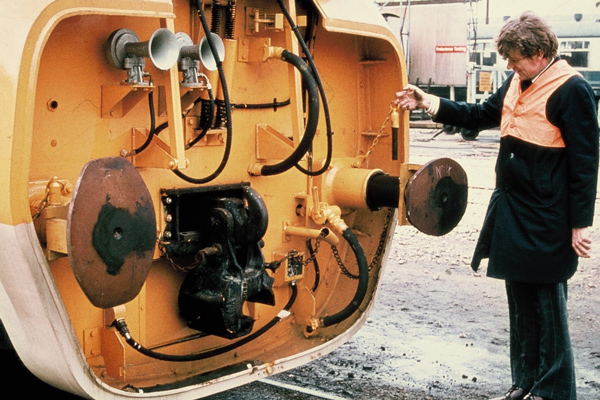

Extend the buffers into the horizontal positionNose fully liftedNose fully lifted

APT-P Nose

Spring-Assisted Linkage
Radius Arm
Nose Locking Catch
Buffers
Coupling Hook & Buckeye
Brake Pipe
Main Reservoir Pipe
Electrical Jumper Cable (Inter-APT Brake / Communication)
